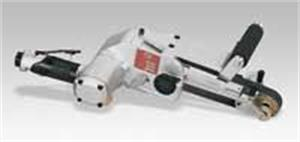

1.2 hp, Right Angle, 13,000 RPM, Front Exhaust, for 1 Inch W x 30 Inch L (25 mm x 762 mm) Belts, Dynabelter Accu-Grinder Heavy-Duty Abrasive Belt Tool

  • Item Code: 11486-DYNABRADE
  • Brand: Dynabrade
  • Unit Size: 1

Description

Grinds welds flat, without undercutting. Heavy-Duty, 1.2 hp model efficiently removes excess weld material and leaves narrow 'in-line' scratch pattern. This model takes the guesswork out of weld grinding, and prevents undercutting!

Features Tech Specs

Features

Back To Top
    • Adjustable guide tires control the depth of abrasive belt cut. Simple twist-knobs adjust depth of cut. Allows controlled grinding on flats, contours and inside/outside of pipes and tanks.
    • Includes 11717 Adjust-A-Wheel Contact Arm with 90-durometer standard serrated Contact Wheel, 2" diameter x 1" wide.
    • Work on Longitudinal Welds; I.D; 12" diameter pipe or larger.; O.D; 8" diameter pipe or larger.

Tech Specs

Back To Top
Belt Size Inches (mm) 1" (25) W x 30" (762) L
Height Inches (mm) 7" (178)
hp (W) 1.2 (895)
Length Inches (mm) 22" (559)
Max. SFPM (SM/Min.) 4,220 (1,282)
Hose I.D. Size Inches (mm) 1/2" (13)
Motor Style Right Angle
Motor Free Speed (RPM) 13,000
Brand Dynabrade
Exhaust Type Front Exhaust
Air Inlet Thread 3/8" NPT
