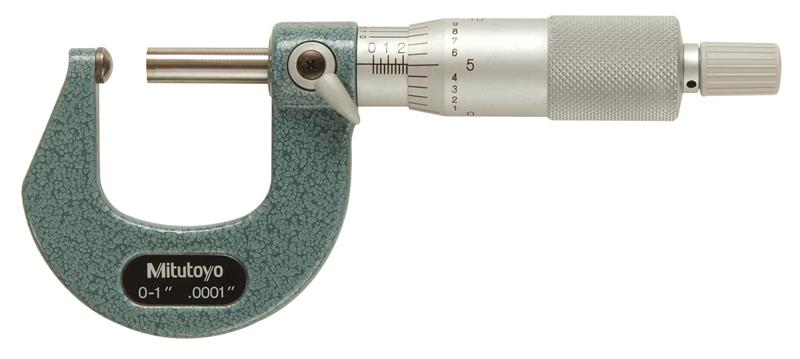

0-1 Inch Measuring Range, 0.0001 Graduation, Ratchet Thimble, Carbide Face, Ball Anvil Micrometer

  • Item Code: 115-153
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed to measure the wall thinkness of varius tubing.
    • With a ratchet stop for constant force.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Brand Mitutoyo
Primary (Outside Diameter) Contact Point Material Carbide
Contact Point Flatness .000024 In
Clutch Ratchet Stop
Contact Point Diameter Special
Primary Measuring Range Lower - Inch 0 In
Individual or Set Individual
Case Material Plastic Case
Case Part Number 475001
Primary Measuring Range Upper - Inch 1 In
Resolution or Graduation .0001 In
Spindle Face Flat
Finish Enamel
Spindle Lock Y
Range 0 - 1 In
Accuracy ±.00015 In
Mechanical or Digital Mechanical
Thimble Diameter Measurement 18mm
