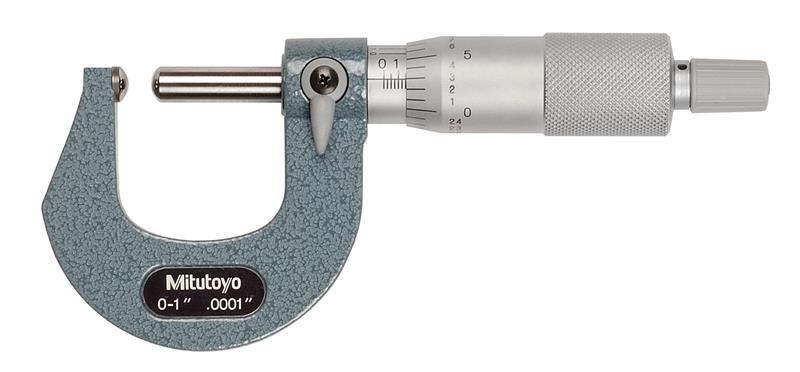

0-1 Inch Measuring Range, 0.0001 Graduation, Ratchet Thimble, Carbide Face, Ball Anvil & Spindle Micrometer

  • Item Code: 115-253
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed to measure the wall thinkness of varius tubing.
    • With a ratchet stop for constant force.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Brand Mitutoyo
Contact Point Diameter Special
Finish Enamel
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In
Mechanical or Digital Mechanical
Clutch Ratchet Stop
Accuracy ±.00015 In
Thimble Diameter Measurement 18mm
Spindle Lock Y
Case Material Plastic Case
Case Part Number 475001
Resolution or Graduation .0001 In
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
Primary (Outside Diameter) Contact Point Material Carbide
Spindle Face Spherical
