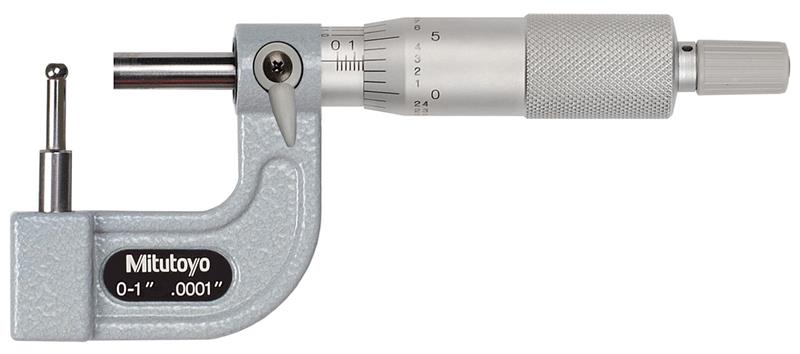

0-1 Inch Measuring Range, 0.0001 Graduation, Ratchet Thimble, Carbide Face, Tubing Micrometer

  • Item Code: 115-313
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • With a ratchet stop for constant force.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Contact Point Flatness .000024 In
Thimble Diameter Measurement 18mm
Individual or Set Individual
Brand Mitutoyo
Case Part Number 475001
Contact Point Diameter Special
Mechanical or Digital Mechanical
Primary Measuring Range Upper - Inch 1 In
Finish Enamel
Range 0 - 1 In
Spindle Lock Y
Accuracy ±.00015 In
Case Material Plastic Case
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 0 In
Resolution or Graduation .0001 In
Spindle Face Flat
Primary (Outside Diameter) Contact Point Material Carbide
