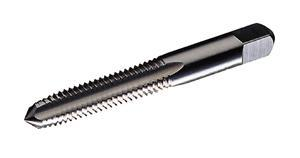

#10-32 UNF HSS 4 Flute 2B Bottoming Maintenance Hand Tap
- Item Code: 11554-WIDIA
- Brand: WIDIA
- Unit Size: 1
| Series |
7305 |
| Adapter/Shank/Bore Dia (in.) |
0.1940" |
| Adapter/Shank/Bore Dia (mm) |
4.93 mm |
| Number of Flutes |
4 |
| Overall Length Inches |
2.3750" |
| Coating/Finish |
Uncoated |
| Thread Diameter (in.) |
0.1900" |
| Brand |
WIDIA |
| Chamfer |
Bottomming |
| Coolant Through |
No |
| Thread Length (in.) |
0.8750" |
| Thread Length (mm) |
22.23 mm |
| Material |
HSS |
| Overall Length Metric |
60.325 mm |
| Thread Type |
NF/UNF |
| Cutting Direction |
Right |
| Thread Diameter (mm) |
4.83 mm |
| Thread Size |
#10 - 32 |
| Type |
Hand Tap |
