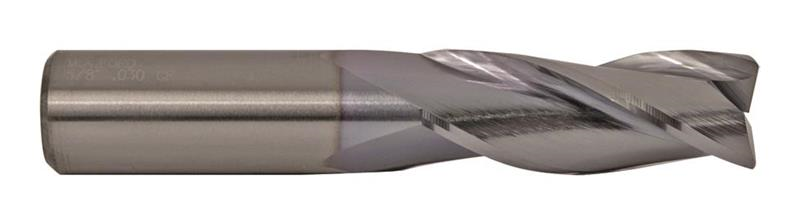

3/16 Inch Diameter, 0.01 Inch Radius, 3-Flute, Solid Carbide TiCN Coated, TuffCut® GP Corner Radius End Mill
- Item Code: 11618758C
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® GP - Series 116 Workhorse
Center Cutting
TiCN Coated
Features
Back To Top- Performs well in all materials including Stainless Steel, Inconel and Stellite.
- Produces long cuts at reasonable speeds on everyday equipment.
- Exceptional tool life at moderate speeds and feeds.
- Ideal for long cuts requiring accuracy and minimal tool wear deflection.
- Perfect Job Shop Tool.
Tech Specs
Back To Top| Length of Cut | 5/8 Inch |
|---|---|
| Length of Cut | 5/8 Inch |
| Type | End Mill |
| Type | End Mill |
| Series | Tuff Cut® GP |
| Series | Tuff Cut® GP |
| Overall Length | 2 Inch |
| Overall Length | 2 Inch |
| Decimal Cutting Diameter | 0.1875" |
| Decimal Cutting Diameter | 0.1875" |
| Brand | MA Ford |
| Brand | MA Ford |
| Coating | TiCN |
| Coating | TiCN |
| Helix | 30° |
| Helix | 30° |
| Fractional Cutting Diameter | 3/16" |
| Fractional Cutting Diameter | 3/16" |
| Number of Flutes | 3 |
| Number of Flutes | 3 |
| Radius Decimal | 0.0100" |
| Radius Decimal | 0.0100" |
| Material | Solid Carbide |
| Material | Solid Carbide |
| Shank Diameter | 3/16 Inch |
| Shank Diameter | 3/16 Inch |
