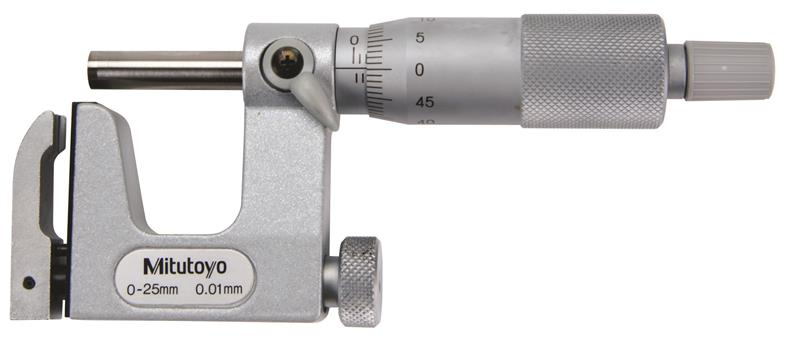

0-25mm Measuring Range, 0.01mm Graduation, Friction Thimble, Carbide Face, Multi-Anvil Micrometer

  • Item Code: 117-101
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Used with optional Disk Anvils can be used as a height micrometer.
    • Supplied in a fitted plastic case.
    • With a ratchet stop for constant force.

Tech Specs

Back To Top
Case Part Number 453405
Clutch Ratchet Stop
Primary Measuring Range Lower - Metric 0mm
Accuracy ±4µm
Range 0 - 1 In
Individual or Set Individual
Brand Mitutoyo
Contact Point Diameter Special
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Metric 25mm
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Spindle Face Flat
Resolution or Graduation 0.01mm
Spindle Lock Y
Contact Point Flatness .000024 In
Finish Enamel
Secondary (Inside Diameter) Contact Point Material Hardened Steel
