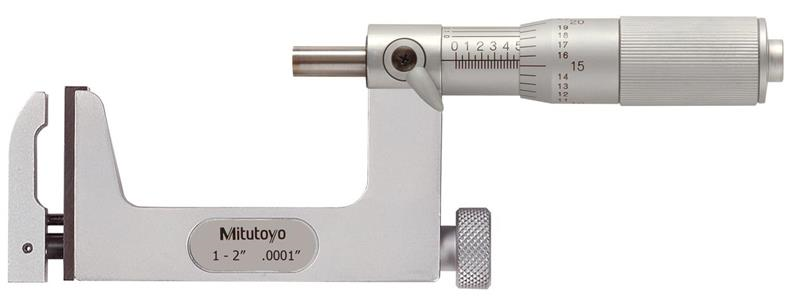

1-2 Inch Measuring Range, 0.0001 Graduation, Friction Thimble, Carbide Face, Multi-Anvil Micrometer

  • Item Code: 117-108
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Used with optional Disk Anvils can be used as a height micrometer.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Case Part Number 453407
Finish Enamel
Range 0 - 1 In
Spindle Lock Y
Brand Mitutoyo
Contact Point Diameter Special
Mechanical or Digital Mechanical
Contact Point Flatness .000024 In
Thimble Diameter Measurement 18mm
Individual or Set Individual
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Clutch Friction Thimble
Case Material Plastic Case
Primary Measuring Range Upper - Inch 2 In
Resolution or Graduation .0001 In
Spindle Face Flat
Accuracy .0002 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 1 In
