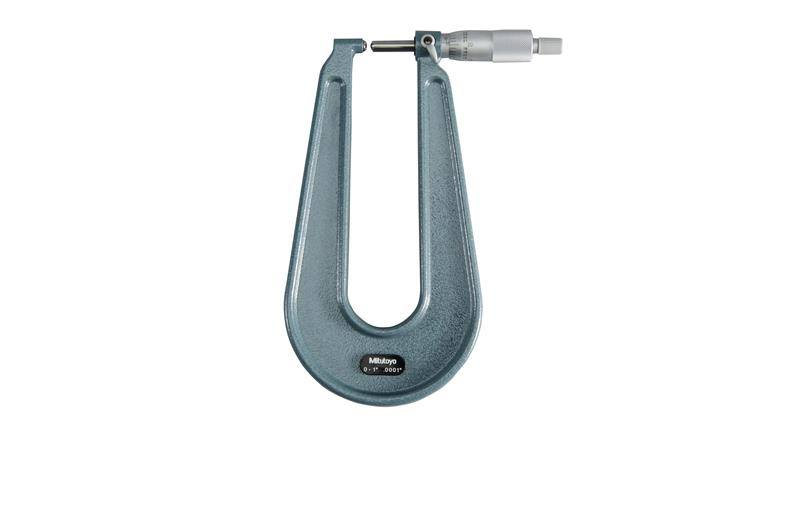

0-1 Inch, 0.0001 Inch Graduation, 6.3 Inch Mechanical Deep Throat Micrometer, Sherical Anvil, Spherical Spindle, Ratchet Stop

  • Item Code: 118-120
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Used with optional Disk Anvils can be used as a height micrometer.
    • Supplied in a fitted plastic case.
    • With a ratchet stop for constant force.

Tech Specs

Back To Top
Case Part Number 475195
Length Measurement 6.3 In
Parallelism .00012 In
Contact Point Flatness .000024 In
Finish Enamel
Contact Point Diameter 6.35mm
Spindle Lock Y
Thimble Diameter Measurement 18mm
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Accuracy .0002 In
Case Material Plastic Case
Clutch Ratchet Stop
Range 1 - 2 In
Resolution or Graduation .0001 In
Spindle Face Flat
Primary Measuring Range Lower - Inch 0 In
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
Brand Mitutoyo
