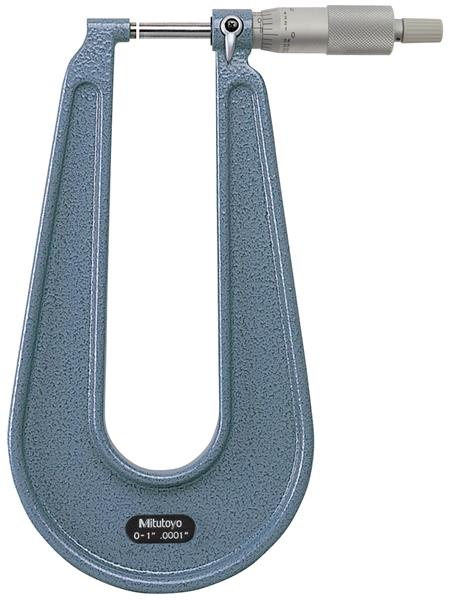

0-1 Inch, 0.0001 Inch Graduation, 6.3 Inch Mechanical Deep Throat Micrometer, Ratchet Stop

  • Item Code: 118-129
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measures thinkness of sheet metal, paper, plastic, and rubber parts.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Clutch Ratchet Stop
Thimble Diameter Measurement 18mm
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 0 In
Contact Point Diameter 6.35mm
Range 0 - 1 In
Parallelism .00012 In
Spindle Lock Y
Accuracy .0002 In
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
Case Material Plastic Case
Case Part Number 475195
Resolution or Graduation .0001 In
Spindle Face Flat
Contact Point Flatness .000024 In
Finish Enamel
Length Measurement 6.3 In
