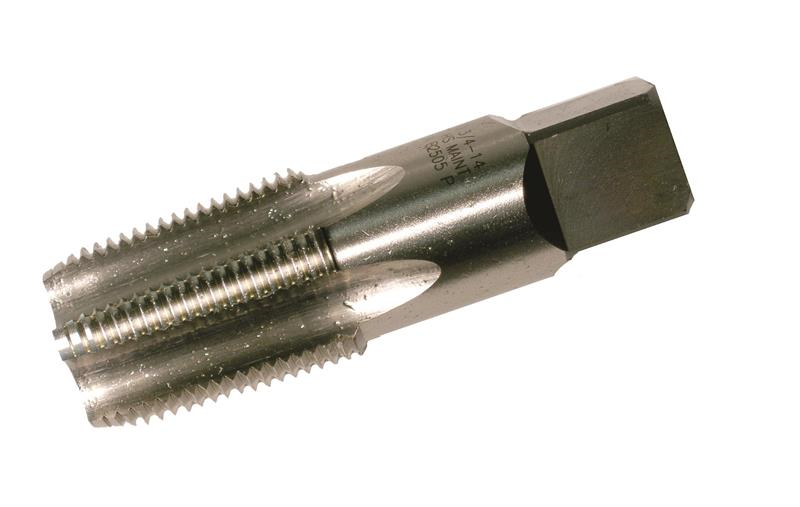

1 1/4-11 1/2 Uncoated HSS NPT 2 1/2-3 1/2 Pitches Chamfered Maintenance Pipe Tap
- Item Code: 11807
- Brand: WIDIA
- Unit Size: 1
Description
Series 7320
Maintenance Pipe Taps
Standard Chamfer 2-1/2--3-1/2 Pitches
Features
Back To Top- General Machining
- Maintenance Applications
Tech Specs
Back To Top| Diameter | 1-1/4 - 11-1/2 |
|---|---|
| Shank Diameter | 1-5/16 Inch |
| Threads Per Inch | 11-1/2 |
| Number of Flutes | 5 |
| Thread Length | 1.7500 Inch |
| Brand | WIDIA |
| Chamfer | Taper |
| Overall Length | 4 Inch |
| Shank Style | Square |
| Unit of Measure | Inch |
| Material | HSS |
| Thread Type | NPT |
| Coating | Uncoated |
| Type | Pipe |
| Product Name | Tap |
| Square Size | 0.9840 Inch |
