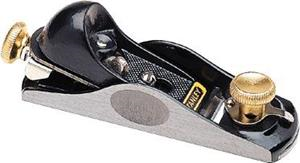

Low Angle Block Plane – 1-3/4 Inch x 6-1/4 Inch - STANLEY® Bailey®
- Item Code: 12-960
- Brand: Stanley
- Unit Size: 1
Description
Ideal for planing end grain and plastic materials.
12-920 block plane has a fully adjustable cutter resting at 21°.
13-1/2° low-angle cutter on the 12-960 block plane keeps vibration to a minimum, creating a fine finish.
Gray, cast-iron base with precision-ground sides and bottom.
Finger grips machined into sides make single-handed use easy.
Hardened, tempered steel gives precision-ground cutter edge durability.
Cutter adjusts for depth and alignment, offering precise control.
Durable epoxy coating for long-lasting protection.
Quick-release cam lock makes iron removal easy.
Replacement Iron 12-508 for 12-920, 12-504 for 12-960.
Features
Back To Top- Ideal for planing end grain and plastic materials.
- 12-920 block plane has a fully adjustable cutter resting at 21°.
- 13-1/2° low-angle cutter on the 12-960 block plane keeps vibration to a minimum, creating a fine finish.
- Gray, cast-iron base with precision-ground sides and bottom.
- Finger grips machined into sides make single-handed use easy.
- Hardened, tempered steel gives precision-ground cutter edge durability.
- Cutter adjusts for depth and alignment, offering precise control.
- Durable epoxy coating for long-lasting protection.
- Quick-release cam lock makes iron removal easy.
- Replacement Iron 12-508 for 12-920, 12-504 for 12-960.
Tech Specs
Back To Top| Blade Width [in] | 1-3/8 |
|---|---|
| Blade Width [mm] | 35 |
| Carton Width [in] | 8.100 |
| Style | Low Angle Block |
| Type | Low Angle Block |
| UPC Code | 076174129601 |
| Carton Height [in] | 5.900 |
| Item Length [in] | 7.800 |
| Item Quantity | 1 |
| Brand | Stanley |
| Carton Weight [lbs] | 10.650 |
| Item Width [in] | 5.400 |
| Overall Length [in] | 6-1/4 |
| Width [mm] | 44 |
| Country of Origin | Mexico |
| Width [in] | 1-3/4 |
| Item Height [in] | 2.800 |
| Item Weight [lbs] | 1.780 |
| Harmonization Code | 8205306000 |
| Carton Length [in] | 12.800 |
| Carton Quantity | 6 |
| Overall Length [mm] | 159 |
