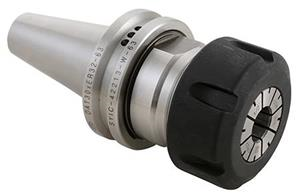

ISO 30 X ER 32 - CMS Collet Chuck
- Item Code: 12000-CMS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Features
Back To Top- Balanced to 40,000 RPM at G2.5
- Certified for accuracy and balance
- "Power Coat" collet nut included
Tech Specs
Back To Top| Gage Length (in) | 2.28 |
|---|---|
| Gage Length (mm) | 58 |
| Gage Length-Face Contact (in) | 2.16 |
| Gage Length-Face Contact (mm) | 54.8 |
| Overall Length (in) | 4.17 |
| Overall Length (mm) | 105.9 |
| Taper | ISO30 |
| Capacity Range (mm) | 1.1 - 21mm |
| Body Diameter-Workpiece Side (in) | 1.969 |
| Lock Nut Diameter (mm) | 50 |
| Material | 8620 Steel |
| Overall Diameter (mm) | 46 |
| Style | Single Ended |
| Capacity Range (in) | 0.043" - 0.83" |
| Collet Series | ER32 |
| Type | V-Flange Collet Chuck |
| Unit of Tool | Metric or Inch |
| Lock Nut Diameter (in) | 1.97 |
| Body Diameter-Workpiece Side (mm) | 50 |
| Overall Diameter (in) | 1.81 |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
