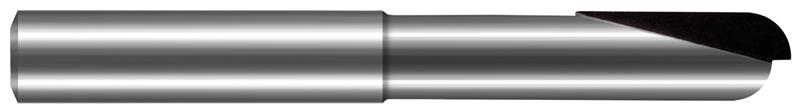

0.0930 in. (3/32) Cutter Diameter x 0.1870 in. (3/16) Length of Cut x 0.3750 in. (3/8) Reach 1 Flute PCD Diamond Coated Carbide Ball End Mill

  • Item Code: 12006
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD Diamond brazed on carbide body
    • Center cutting
    • Recommended work piece material: Aluminum, Copper, Brass, Bronze, Plastics, Graphite, Carbon, Carbon Fiber Materials, Green Carbide, Gold, Silver, Magnesium, Zinc, Green Ceramics

Tech Specs

Back To Top
Length of Cut 0.1870" (3/16)
Neck Diameter 0.0850"
Overall Length 1.5000" (1-1/2)
Decimal Diameter 0.0930"
Brand Harvey Tool
Overall Reach 0.3750" (3/8)
Coating/Finish PCD Diamond
Fractional Diameter 3/32"
Material Solid Carbide
Number of Flutes 1
Shank Diameter 0.1250" (1/8)
