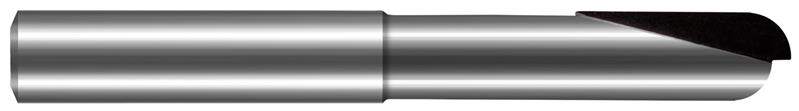

0.1250 in. (1/8) Cutter Diameter x 0.2500 in. (1/4) Length of Cut x 0.5000 in. (1/2) Reach 1 Flute PCD Diamond Coated Carbide Ball End Mill

  • Item Code: 12008-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD Diamond brazed on carbide body
    • Center cutting
    • Recommended work piece material: Aluminum, Copper, Brass, Bronze, Plastics, Graphite, Carbon, Carbon Fiber Materials, Green Carbide, Gold, Silver, Magnesium, Zinc, Green Ceramics

Tech Specs

Back To Top
Fractional Diameter 1/8"
Shank Diameter 0.1250" (1/8)
Overall Reach 0.5000" (1/2)
Number of Flutes 1
Overall Length 1.5000" (1-1/2)
Material Solid Carbide
Decimal Diameter 0.1250"
Coating/Finish PCD Diamond
Brand Harvey Tool
Length of Cut 0.2500" (1/4)
Neck Diameter 0.1150"
