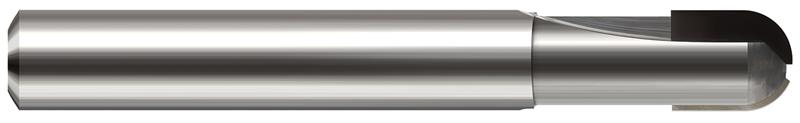

0.1870 in. (3/16) Cutter Diameter x 0.2500 in. (1/4) Length of Cut x 0.6250 in. (5/8) Reach 2 Flute PCD Diamond Coated Carbide Ball End Mill

  • Item Code: 12012-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD Diamond brazed on carbide body
    • Center cutting
    • Recommended work piece material: Aluminum, Copper, Brass, Bronze, Plastics, Graphite, Carbon, Carbon Fiber Materials, Green Carbide, Gold, Silver, Magnesium, Zinc, Green Ceramics

Tech Specs

Back To Top
Decimal Diameter 0.1870"
Neck Diameter 0.1760"
Overall Reach 0.6250" (5/8)
Material Solid Carbide
Number of Flutes 2
Brand Harvey Tool
Length of Cut 0.2500" (1/4)
Coating/Finish PCD Diamond
Shank Diameter 0.1875" (3/16)
Fractional Diameter 3/16"
Overall Length 2.0000" (2)
