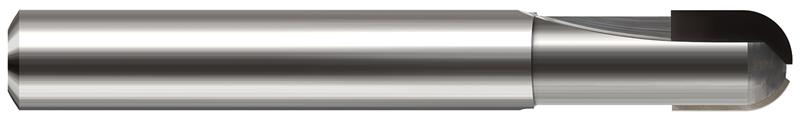

0.2500 in. (1/4) Cutter Diameter x 0.3120 in. (5/16) Length of Cut x 0.7500 in. (3/4) Reach 2 Flute PCD Diamond Coated Carbide Ball End Mill

  • Item Code: 12016
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD Diamond brazed on carbide body
    • Center cutting
    • Recommended work piece material: Aluminum, Copper, Brass, Bronze, Plastics, Graphite, Carbon, Carbon Fiber Materials, Green Carbide, Gold, Silver, Magnesium, Zinc, Green Ceramics

Tech Specs

Back To Top
Decimal Diameter 0.2500"
Fractional Diameter 1/4"
Length of Cut 0.3120" (5/16)
Number of Flutes 2
Overall Reach 0.7500" (3/4)
Coating/Finish PCD Diamond
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
Material Solid Carbide
Neck Diameter 0.2350"
Shank Diameter 0.2500" (1/4)
