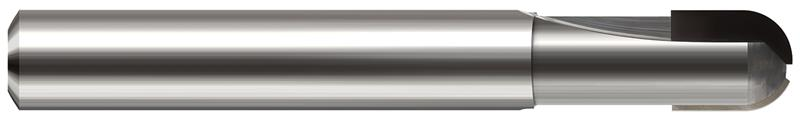

0.3750 in. (3/8) Cutter Diameter x 0.4370 in. (7/16) Length of Cut x 0.9370 in. (15/16) Reach 2 Flute PCD Diamond Coated Carbide Ball End Mill

  • Item Code: 12024-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD Diamond brazed on carbide body
    • Center cutting
    • Recommended work piece material: Aluminum, Copper, Brass, Bronze, Plastics, Graphite, Carbon, Carbon Fiber Materials, Green Carbide, Gold, Silver, Magnesium, Zinc, Green Ceramics

Tech Specs

Back To Top
Decimal Diameter 0.3750"
Neck Diameter 0.3500"
Coating/Finish PCD Diamond
Overall Reach 0.9370" (15/16)
Shank Diameter 0.3750" (3/8)
Material Solid Carbide
Fractional Diameter 3/8"
Length of Cut 0.4370" (7/16)
Number of Flutes 2
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
