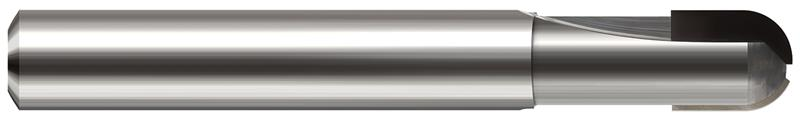

0.5000 in. (1/2) Cutter Diameter x 0.5000 in. (1/2) Length of Cut x 1.0000 in. (1) Reach 2 Flute PCD Diamond Coated Carbide Ball End Mill

  • Item Code: 12032-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD Diamond brazed on carbide body
    • Center cutting
    • Recommended work piece material: Aluminum, Copper, Brass, Bronze, Plastics, Graphite, Carbon, Carbon Fiber Materials, Green Carbide, Gold, Silver, Magnesium, Zinc, Green Ceramics

Tech Specs

Back To Top
Length of Cut 0.5000" (1/2)
Overall Reach 1.0000" (1)
Number of Flutes 2
Shank Diameter 0.5000" (1/2)
Brand Harvey Tool
Neck Diameter 0.4610"
Overall Length 3.0000" (3)
Fractional Diameter 1/2"
Coating/Finish PCD Diamond
Decimal Diameter 0.5000"
Material Solid Carbide
