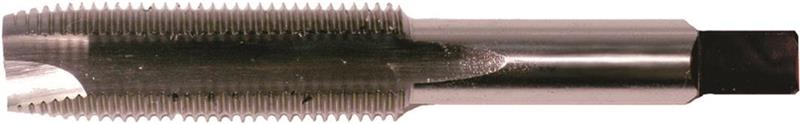

#6-32 Uncoated HSS Plug Chamfer 3-5 Pitch Maintenance Gun™ Tap
- Item Code: 12032
- Brand: WIDIA
- Unit Size: 1
Description
Series 7301
Maintenance GUN Taps
Plug Chamfer
Features
Back To Top- General Machining
- Maintenance Applications
Tech Specs
Back To Top| Brand | WIDIA |
|---|---|
| Number of Flutes | 2 |
| Thread Class | 2B |
| Thread Length | 0.6875 Inch |
| Threads Per Inch | 32 |
| Unit of Measure | Inch |
| Diameter | #6 - 32 |
| Overall Length | 2 Inch |
| Product Name | Tap |
| Shank Style | Square |
| Material | HSS |
| Shank Diameter | 0.1410 Inch |
| Thread Type | NC/UNC |
| Square Size | 0.1100 Inch |
| Chamfer | Plug |
| Coating | Uncoated |
