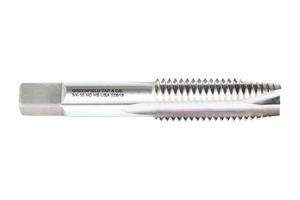

#8-32 Uncoated HSS Plug Chamfer 3-5 Pitch Maintenance Gun? Tap
- Item Code: 12034-WIDIA
- Brand: WIDIA
- Unit Size: 1
| Overall Length Metric |
54.61 mm |
| Overall Length Inches |
2.1500" |
| Adapter/Shank/Bore Dia (in.) |
0.1680" |
| Chamfer |
Plug |
| Thread Length (in.) |
0.7500" |
| Thread Size |
#8 - 32 |
| Number of Flutes |
2 |
| Thread Diameter (in.) |
0.1640" |
| Series |
GUN |
| Thread Length (mm) |
19.05 mm |
| Coolant Through |
No |
| Type |
Spiral Point Tap |
| Brand |
WIDIA |
| Coating/Finish |
Uncoated |
| Thread Diameter (mm) |
4.17 mm |
| Adapter/Shank/Bore Dia (mm) |
4.27 mm |
| Thread Type |
NC/UNC |
| Cutting Direction |
Right |
| Material |
HSS |
