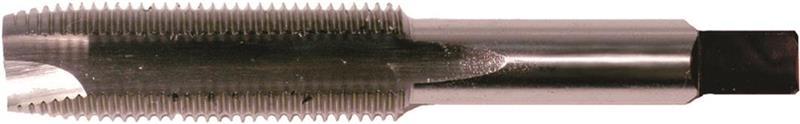

#10-24 Uncoated HSS Plug Chamfer 3-5 Pitch Maintenance Gun™ Tap
- Item Code: 12036
- Brand: WIDIA
- Unit Size: 1
Description
Series 7301
Maintenance GUN Taps
Plug Chamfer
Features
Back To Top- General Machining
- Maintenance Applications
Tech Specs
Back To Top| Thread Length | 0.8750 Inch |
|---|---|
| Thread Type | NC/UNC |
| Chamfer | Plug |
| Material | HSS |
| Product Name | Tap |
| Overall Length | 2-3/8 Inch |
| Shank Diameter | 0.1940 Inch |
| Shank Style | Square |
| Square Size | 0.1520 Inch |
| Threads Per Inch | 24 |
| Brand | WIDIA |
| Coating | Uncoated |
| Diameter | #10 - 24 |
| Number of Flutes | 2 |
| Thread Class | 2B |
| Unit of Measure | Inch |
