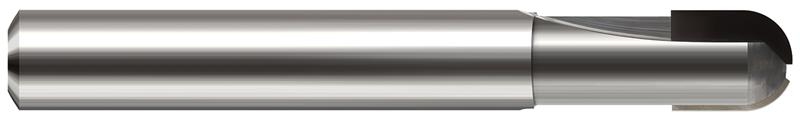

0.6250 in. (5/8) Cutter Diameter x 0.5000 in. (1/2) Length of Cut x 1.0000 in. (1) Reach 2 Flute PCD Diamond Coated Carbide Ball End Mill

  • Item Code: 12040-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD Diamond brazed on carbide body
    • Center cutting
    • Recommended work piece material: Aluminum, Copper, Brass, Bronze, Plastics, Graphite, Carbon, Carbon Fiber Materials, Green Carbide, Gold, Silver, Magnesium, Zinc, Green Ceramics

Tech Specs

Back To Top
Neck Diameter 0.5730"
Overall Reach 1.0000" (1)
Shank Diameter 0.6250" (5/8)
Decimal Diameter 0.6250"
Brand Harvey Tool
Length of Cut 0.5000" (1/2)
Material Solid Carbide
Fractional Diameter 5/8"
Overall Length 3.5000" (3-1/2)
Number of Flutes 2
Coating/Finish PCD Diamond
