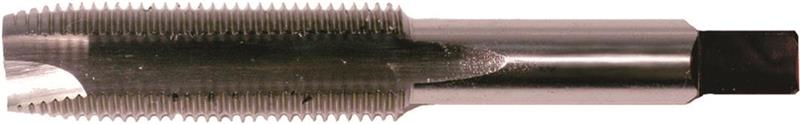

1/4-20 Uncoated HSS Plug Chamfer 3-5 Pitch Maintenance Gun™ Tap
- Item Code: 12040
- Brand: WIDIA
- Unit Size: 1
Description
Series 7301
Maintenance GUN Taps
Plug Chamfer
Features
Back To Top- General Machining
- Maintenance Applications
Tech Specs
Back To Top| Material | HSS |
|---|---|
| Brand | WIDIA |
| Diameter | 1/4 - 20 |
| Shank Style | Square |
| Unit of Measure | Inch |
| Square Size | 0.1910 Inch |
| Thread Type | NC/UNC |
| Number of Flutes | 2 |
| Overall Length | 2-1/2 Inch |
| Product Name | Tap |
| Thread Class | 2B |
| Thread Length | 1 Inch |
| Chamfer | Plug |
| Coating | Uncoated |
| Shank Diameter | 0.2550 Inch |
| Threads Per Inch | 20 |
