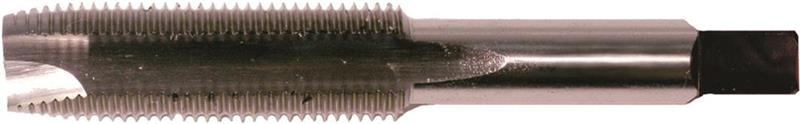

5/16-18 Uncoated HSS Plug Chamfer 3-5 Pitch Maintenance Gun™ Tap
- Item Code: 12042
- Brand: WIDIA
- Unit Size: 1
Description
Series 7301
Maintenance GUN Taps
Plug Chamfer
Features
Back To Top- General Machining
- Maintenance Applications
Tech Specs
Back To Top| Thread Length | 1.1250 Inch |
|---|---|
| Chamfer | Plug |
| Material | HSS |
| Thread Type | NC/UNC |
| Square Size | 0.2380 Inch |
| Threads Per Inch | 18 |
| Diameter | 5/16 - 18 |
| Product Name | Tap |
| Shank Diameter | 0.3180 Inch |
| Shank Style | Square |
| Brand | WIDIA |
| Coating | Uncoated |
| Number of Flutes | 2 |
| Overall Length | 2-23/32 Inch |
| Thread Class | 2B |
| Unit of Measure | Inch |
