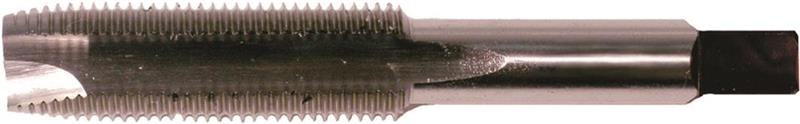

3/8-24 Uncoated HSS Plug Chamfer 3-5 Pitch Maintenance Gun™ Tap
- Item Code: 12045-G
- Brand: WIDIA
- Unit Size: 1
Description
Series 7301
Maintenance GUN Taps
Plug Chamfer
Features
Back To Top- General Machining
- Maintenance Applications
Tech Specs
Back To Top| Threads Per Inch | 24 |
|---|---|
| Thread Type | NF/UNF |
| Diameter | 3/8 - 24 |
| Material | HSS |
| Overall Length | 2-15/16 Inch |
| Product Name | Tap |
| Square Size | 0.2860 Inch |
| Thread Class | 2B |
| Thread Length | 1.2500 Inch |
| Brand | WIDIA |
| Number of Flutes | 3 |
| Shank Diameter | 0.3810 Inch |
| Shank Style | Square |
| Unit of Measure | Inch |
| Chamfer | Plug |
| Coating | Uncoated |
