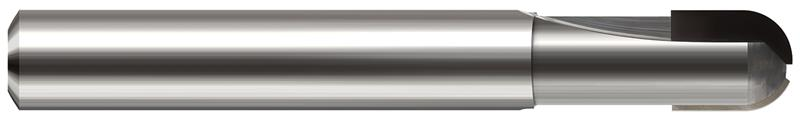

0.7500 in. (3/4) Cutter Diameter x 0.6250 in. (5/8) Length of Cut x 1.1250 in. (1-1/8) Reach 2 Flute PCD Diamond Coated Carbide Ball End Mill

  • Item Code: 12048-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD Diamond brazed on carbide body
    • Center cutting
    • Recommended work piece material: Aluminum, Copper, Brass, Bronze, Plastics, Graphite, Carbon, Carbon Fiber Materials, Green Carbide, Gold, Silver, Magnesium, Zinc, Green Ceramics

Tech Specs

Back To Top
Overall Reach 1.1250" (1-1/8)
Neck Diameter 0.6840"
Shank Diameter 0.7500" (3/4)
Coating/Finish PCD Diamond
Length of Cut 0.6250" (5/8)
Decimal Diameter 0.7500"
Fractional Diameter 3/4"
Material Solid Carbide
Overall Length 4.0000" (4)
Number of Flutes 2
Brand Harvey Tool
