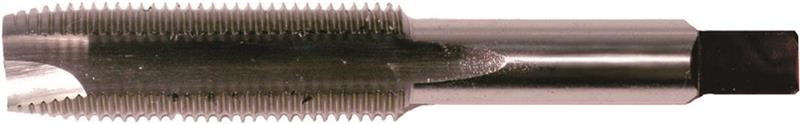

1/2-13 Uncoated HSS Plug Chamfer 3-5 Pitch Maintenance Gun™ Tap
- Item Code: 12048
- Brand: WIDIA
- Unit Size: 1
Description
Series 7301
Maintenance GUN Taps
Plug Chamfer
Features
Back To Top- General Machining
- Maintenance Applications
Tech Specs
Back To Top| Number of Flutes | 3 |
|---|---|
| Product Name | Tap |
| Shank Style | Square |
| Brand | WIDIA |
| Square Size | 0.2750 Inch |
| Thread Class | 2B |
| Unit of Measure | Inch |
| Overall Length | 3-3/8 Inch |
| Shank Diameter | 0.3670 Inch |
| Thread Length | 1.6562 Inch |
| Coating | Uncoated |
| Threads Per Inch | 13 |
| Diameter | 1/2 - 13 |
| Material | HSS |
| Thread Type | NC/UNC |
| Chamfer | Plug |
