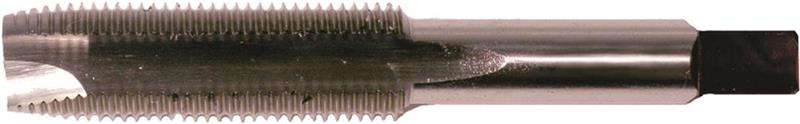

1/2-20 Uncoated HSS Plug Chamfer 3-5 Pitch Maintenance Gun™ Tap
- Item Code: 12049-G
- Brand: WIDIA
- Unit Size: 1
Description
Series 7301
Maintenance GUN Taps
Plug Chamfer
Features
Back To Top- General Machining
- Maintenance Applications
Tech Specs
Back To Top| Chamfer | Plug |
|---|---|
| Material | HSS |
| Thread Type | NF/UNF |
| Coating | Uncoated |
| Diameter | 1/2 - 20 |
| Unit of Measure | Inch |
| Brand | WIDIA |
| Number of Flutes | 3 |
| Shank Style | Square |
| Threads Per Inch | 20 |
| Product Name | Tap |
| Thread Class | 2B |
| Thread Length | 1.6562 Inch |
| Overall Length | 3-3/8 Inch |
| Shank Diameter | 0.3670 Inch |
| Square Size | 0.2750 Inch |
