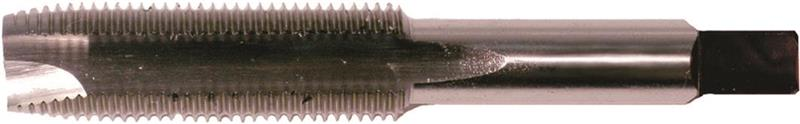

3/4-10 Uncoated HSS Plug Chamfer 3-5 Pitch Maintenance Gun™ Tap
- Item Code: 12052
- Brand: WIDIA
- Unit Size: 1
Description
Series 7301
Maintenance GUN Taps
Plug Chamfer
Features
Back To Top- General Machining
- Maintenance Applications
Tech Specs
Back To Top| Thread Class | 2B |
|---|---|
| Chamfer | Plug |
| Material | HSS |
| Overall Length | 4-1/4 Inch |
| Thread Length | 1.8125 Inch |
| Coating | Uncoated |
| Square Size | 0.4060 Inch |
| Shank Diameter | 0.5900 Inch |
| Brand | WIDIA |
| Diameter | 3/4 - 10 |
| Number of Flutes | 3 |
| Shank Style | Square |
| Unit of Measure | Inch |
| Product Name | Tap |
| Thread Type | NC/UNC |
| Threads Per Inch | 10 |
