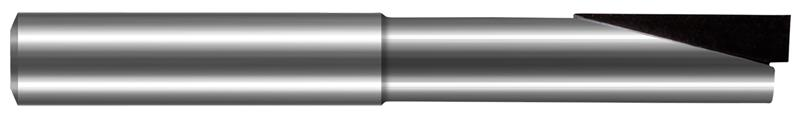

0.0930 in. (3/32) Cutter Diameter x 0.1870 in. (3/16) Length of Cut x 0.3750 in. (3/8) Reach 1 Flute PCD Diamond Coated Carbide Square End Mill
- Item Code: 12106-HARVEY
- Brand: Harvey Tool
- Unit Size: 1
Description
For Non-Ferrous Materials
Features
Back To Top- PCD diamond brazed on solid carbide body allows for significant tool life improvement over carbide
- Recommended work piece material: aluminum, copper, brass, bronze, plastics, graphite, carbon, carbon fiber materials, green carbide, gold, silver, magnesium, zinc, green ceramics
- Center cutting
Tech Specs
Back To Top| Coating/Finish | PCD Diamond |
|---|---|
| Brand | Harvey Tool |
| Fractional Diameter | 3/32" |
| Number of Flutes | 1 |
| Overall Reach | 0.3750" (3/8) |
| Neck Diameter | 0.0850" |
| Material | Solid Carbide |
| Shank Diameter | 0.1250" (1/8) |
| Decimal Diameter | 0.0930" |
| Length of Cut | 0.1870" (3/16) |
| Overall Length | 1.5000" (1-1/2) |
