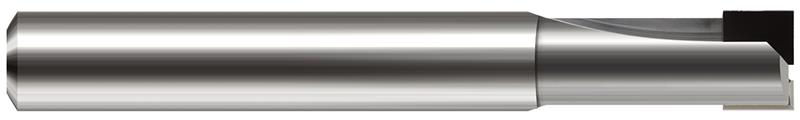

0.1870 in. (3/16) Cutter Diameter x 0.2500 in. (1/4) Length of Cut x 0.6250 in. (5/8) Reach 2 Flute PCD Diamond Coated Carbide Square End Mill

  • Item Code: 12112-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD diamond brazed on solid carbide body allows for significant tool life improvement over carbide
    • Recommended work piece material: aluminum, copper, brass, bronze, plastics, graphite, carbon, carbon fiber materials, green carbide, gold, silver, magnesium, zinc, green ceramics
    • Center cutting

Tech Specs

Back To Top
Brand Harvey Tool
Material Solid Carbide
Coating/Finish PCD Diamond
Number of Flutes 2
Overall Length 2.0000" (2)
Overall Reach 0.6250" (5/8)
Shank Diameter 0.1875" (3/16)
Decimal Diameter 0.1870"
Length of Cut 0.2500" (1/4)
Neck Diameter 0.1760"
Fractional Diameter 3/16"
