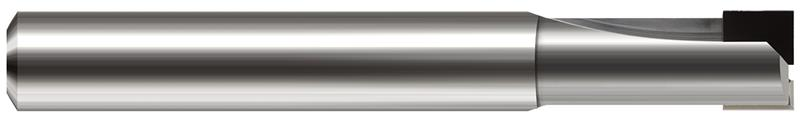

0.2500 in. (1/4) Cutter Diameter x 0.2500 in. (1/4) Length of Cut x 0.7500 in. (3/4) Reach 2 Flute PCD Diamond Coated Carbide Square End Mill

  • Item Code: 12116-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD diamond brazed on solid carbide body allows for significant tool life improvement over carbide
    • Recommended work piece material: aluminum, copper, brass, bronze, plastics, graphite, carbon, carbon fiber materials, green carbide, gold, silver, magnesium, zinc, green ceramics
    • Center cutting

Tech Specs

Back To Top
Neck Diameter 0.2350"
Overall Reach 0.7500" (3/4)
Material Solid Carbide
Number of Flutes 2
Coating/Finish PCD Diamond
Decimal Diameter 0.2500"
Brand Harvey Tool
Length of Cut 0.2500" (1/4)
Overall Length 2.5000" (2-1/2)
Fractional Diameter 1/4"
Shank Diameter 0.2500" (1/4)
