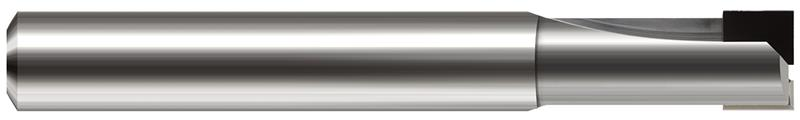

0.3120 in. (5/16) Cutter Diameter x 0.2500 in. (1/4) Length of Cut x 0.8120 in. (13/16) Reach 2 Flute PCD Diamond Coated Carbide Square End Mill

  • Item Code: 12120-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD diamond brazed on solid carbide body allows for significant tool life improvement over carbide
    • Recommended work piece material: aluminum, copper, brass, bronze, plastics, graphite, carbon, carbon fiber materials, green carbide, gold, silver, magnesium, zinc, green ceramics
    • Center cutting

Tech Specs

Back To Top
Decimal Diameter 0.3120"
Neck Diameter 0.2940"
Overall Reach 0.8120" (13/16)
Fractional Diameter 5/16"
Material Solid Carbide
Number of Flutes 2
Brand Harvey Tool
Length of Cut 0.2500" (1/4)
Overall Length 2.5000" (2-1/2)
Shank Diameter 0.3125" (5/16)
Coating/Finish PCD Diamond
