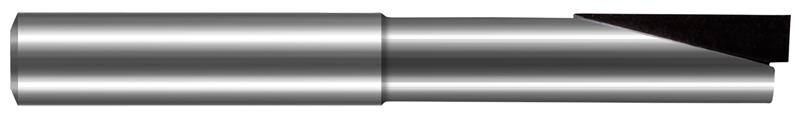

0.1180 in. (3 mm) Cutter Diameter x 0.2500 in. (1/4) Length of Cut x 0.5000 in. (1/2) Reach 1 Flute PCD Diamond Coated Carbide Square End Mill
- Item Code: 1213M
- Brand: Harvey Tool
- Unit Size: 1
Description
For Non-Ferrous Materials
Features
Back To Top- PCD diamond brazed on solid carbide body allows for significant tool life improvement over carbide
- Recommended work piece material: aluminum, copper, brass, bronze, plastics, graphite, carbon, carbon fiber materials, green carbide, gold, silver, magnesium, zinc, green ceramics
- Center cutting
Tech Specs
Back To Top| Metric Diameter | 3.00 mm |
|---|---|
| Decimal Diameter | 0.1180" |
| Length of Cut | 0.2500" (1/4) |
| Overall Length | 1.5000" (1-1/2) |
| Brand | Harvey Tool |
| Material | Solid Carbide |
| Number of Flutes | 1 |
| Overall Reach | 0.5000" (1/2) |
| Shank Diameter | 0.1250" (1/8) |
| Coating/Finish | PCD Diamond |
| Neck Diameter | 0.1080" |
