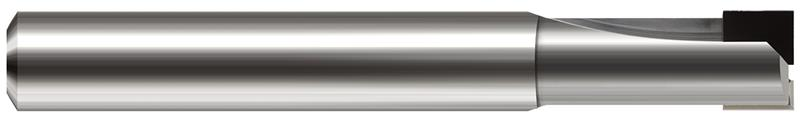

0.6250 in. (5/8) Cutter Diameter x 0.3750 in. (3/8) Length of Cut x 1.0000 in. (1) Reach 2 Flute PCD Diamond Coated Carbide Square End Mill

  • Item Code: 12140-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD diamond brazed on solid carbide body allows for significant tool life improvement over carbide
    • Recommended work piece material: aluminum, copper, brass, bronze, plastics, graphite, carbon, carbon fiber materials, green carbide, gold, silver, magnesium, zinc, green ceramics
    • Center cutting

Tech Specs

Back To Top
Decimal Diameter 0.6250"
Number of Flutes 2
Fractional Diameter 5/8"
Overall Length 3.5000" (3-1/2)
Brand Harvey Tool
Overall Reach 1.0000" (1)
Neck Diameter 0.5730"
Coating/Finish PCD Diamond
Length of Cut 0.3750" (3/8)
Shank Diameter 0.6250" (5/8)
Material Solid Carbide
