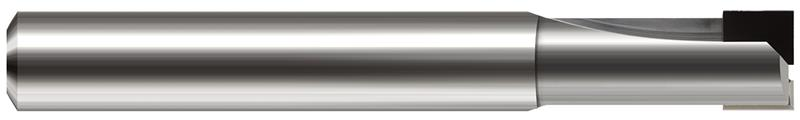

0.7500 in. (3/4) Cutter Diameter x 0.3750 in. (3/8) Length of Cut x 1.1250 in. (1-1/8) Reach 2 Flute PCD Diamond Coated Carbide Square End Mill
- Item Code: 12148-HARVEY
- Brand: Harvey Tool
- Unit Size: 1
Description
For Non-Ferrous Materials
Features
Back To Top- PCD diamond brazed on solid carbide body allows for significant tool life improvement over carbide
- Recommended work piece material: aluminum, copper, brass, bronze, plastics, graphite, carbon, carbon fiber materials, green carbide, gold, silver, magnesium, zinc, green ceramics
- Center cutting
Tech Specs
Back To Top| Length of Cut | 0.3750" (3/8) |
|---|---|
| Coating/Finish | PCD Diamond |
| Neck Diameter | 0.6840" |
| Overall Reach | 1.1250" (1-1/8) |
| Decimal Diameter | 0.7500" |
| Fractional Diameter | 3/4" |
| Overall Length | 4.0000" (4) |
| Shank Diameter | 0.7500" (3/4) |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| Brand | Harvey Tool |
