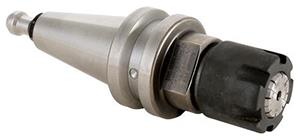

ISO 25 x ER 25 - 50mm Slotted Nut & Pullstud Collet Chuck

  • Item Code: 12194-ISO25
  • Brand: Techniks
  • Unit Size: 1

Description

Techniks ISO Collet Chucks are balanced to 40,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.

Features Tech Specs

Features

Back To Top
    • Balanced to 40,000 RPM at G2.5
    • Certified for accuracy and balance
    • "Power Coat" collet nut included

Tech Specs

Back To Top
Balanced to 40,000 RPM at G2.5
Capacity Range (in) 0.039" - 0.75"
Gage Length-Face Contact (in) 1.88
Gage Length-Face Contact (mm) 47.8
Overall Diameter (mm) 38
Overall Length (in) 3.52
Overall Length (mm) 89.4
Taper ISO25
Brand Techniks
Material 8620 Steel
Overall Diameter (in) 1.5
Type V-Flange Collet Chuck
Capacity Range (mm) 1 - 19.1mm
Collet Series ER25
Body Diameter-Workpiece Side (mm) 42
Style Single Ended
Gage Length (in) 1.97
Gage Length (mm) 50
Unit of Tool Metric or Inch
Lock Nut Diameter (mm) 41.9
Lock Nut Diameter (in) 1.65
Body Diameter-Workpiece Side (in) 1.654
