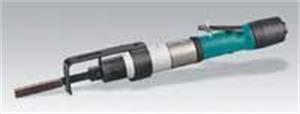

.4 hp, Straight-Line, 13/32 Inch (10 mm), 2,400 SPM, Stockade Reciprocating Sander

  • Item Code: 12204-DYNABRADE
  • Brand: Dynabrade
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Has 5" long x 1/2" wide spring-steel extender which accepts stick-on coated abrasive strips (sold separately).
    • 80 and 180 grit abrasive strips are included.
    • Three platen pads are included, which may be mounted to the extender as a backing for the abrasive strip.
    • Safety-lock lever is standard; rear exhaust.

Tech Specs

Back To Top
PSA Abrasive Size Inch (mm) 1/2" (13) x 5" (127)
Exhaust Type Rear
Length Inches (mm) 10" (254)
Configuration Straight-Line
Power Transmission Planetary-Geared
Brand Dynabrade
Height Inches (mm) 1-1/2" (38)
Hose I.D. Size Inches (mm) 1/4" (6)
SPM 0-2,400
Air Inlet Thread 1/4" NPT
hp (W) .4 (298)
Stroke Length Inches (mm) 13/32" (10)
