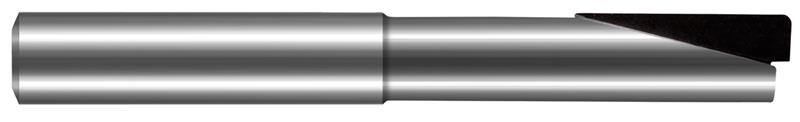

0.1250 in. (1/8) Cutter Diameter x 0.0150 in. (1/64) Radius x 0.2500 in. (1/4) Length of Cut x 0.5000 in. (1/2) Reach 1 Flute PCD Diamond Coated Carbide Corner Radius End Mill

  • Item Code: 12208-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD Diamond brazed on carbide body
    • Center cutting
    • Recommended work piece material: Aluminum, Copper, Brass, Bronze, Plastics, Graphite, Carbon, Carbon Fiber Materials, Green Carbide, Gold, Silver, Magnesium, Zinc and Green Ceramics.

Tech Specs

Back To Top
Overall Length 1.5000" (1-1/2)
Overall Length 1.5000" (1-1/2)
Fractional Cutting Diameter 1/8"
Fractional Cutting Diameter 1/8"
Radius Decimal 0.0150"
Radius Decimal 0.0150"
Length of Cut 0.2500" (1/4)
Length of Cut 0.2500" (1/4)
Number of Flutes 1
Number of Flutes 1
Neck Diameter 0.1150"
Neck Diameter 0.1150"
Coating PCD Diamond
Coating PCD Diamond
Material Solid Carbide
Material Solid Carbide
Overall Reach 0.5000" (1/2)
Overall Reach 0.5000" (1/2)
Shank Diameter 0.1250" (1/8)
Brand Harvey Tool
Radius Fractional 1/64"
Radius Fractional 1/64"
Decimal Cutting Diameter 0.1250"
Decimal Cutting Diameter 0.1250"
