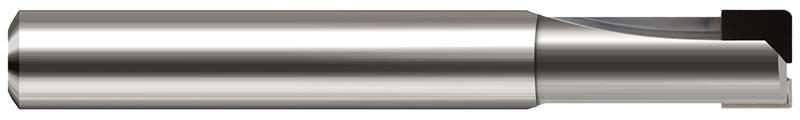

0.1870 in. (3/16) Cutter Diameter x 0.0150 in. (1/64) Radius x 0.2500 in. (1/4) Length of Cut x 0.6250 in. (5/8) Reach 2 Flute PCD Diamond Coated Carbide Corner Radius End Mill

  • Item Code: 12212-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD Diamond brazed on carbide body
    • Center cutting
    • Recommended work piece material: Aluminum, Copper, Brass, Bronze, Plastics, Graphite, Carbon, Carbon Fiber Materials, Green Carbide, Gold, Silver, Magnesium, Zinc and Green Ceramics.

Tech Specs

Back To Top
Neck Diameter 0.1760"
Neck Diameter 0.1760"
Decimal Cutting Diameter 0.1870"
Decimal Cutting Diameter 0.1870"
Radius Decimal 0.0150"
Radius Decimal 0.0150"
Shank Diameter 0.1875" (3/16)
Shank Diameter 0.1875" (3/16)
Fractional Cutting Diameter 3/16"
Radius Fractional 1/64"
Fractional Cutting Diameter 3/16"
Brand Harvey Tool
Coating PCD Diamond
Length of Cut 0.2500" (1/4)
Number of Flutes 2
Number of Flutes 2
Material Solid Carbide
Material Solid Carbide
Overall Length 2.0000" (2)
Overall Length 2.0000" (2)
Overall Reach 0.6250" (5/8)
Overall Reach 0.6250" (5/8)
