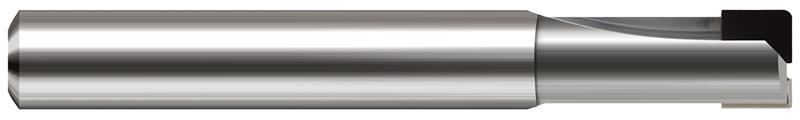

0.2500 in. (1/4) Cutter Diameter x 0.0300 in. Radius x 0.2500 in. (1/4) Length of Cut x 0.7500 in. (3/4) Reach 2 Flute PCD Diamond Coated Carbide Corner Radius End Mill
- Item Code: 12216-HARVEY
- Brand: Harvey Tool
- Unit Size: 1
Description
For Non-Ferrous Materials
Features
Back To Top- PCD Diamond brazed on carbide body
- Center cutting
- Recommended work piece material: Aluminum, Copper, Brass, Bronze, Plastics, Graphite, Carbon, Carbon Fiber Materials, Green Carbide, Gold, Silver, Magnesium, Zinc and Green Ceramics.
Tech Specs
Back To Top| Decimal Cutting Diameter | 0.2500" |
|---|---|
| Decimal Cutting Diameter | 0.2500" |
| Radius Decimal | 0.0300" |
| Radius Decimal | 0.0300" |
| Brand | Harvey Tool |
| Brand | Harvey Tool |
| Fractional Cutting Diameter | 1/4" |
| Fractional Cutting Diameter | 1/4" |
| Length of Cut | 0.2500" (1/4) |
| Length of Cut | 0.2500" (1/4) |
| Overall Length | 2.5000" (2-1/2) |
| Overall Length | 2.5000" (2-1/2) |
| Shank Diameter | 0.2500" (1/4) |
| Shank Diameter | 0.2500" (1/4) |
| Number of Flutes | 2 |
| Number of Flutes | 2 |
| Overall Reach | 0.7500" (3/4) |
| Overall Reach | 0.7500" (3/4) |
| Material | Solid Carbide |
| Neck Diameter | 0.2350" |
| Coating | PCD Diamond |
