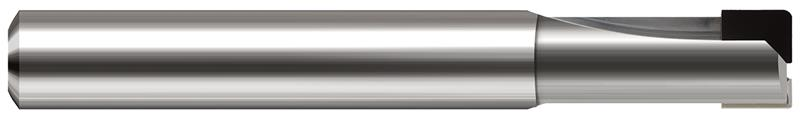

0.3750 in. (3/8) Cutter Diameter x 0.0300 in. Radius x 0.2500 in. (1/4) Length of Cut x 0.9370 in. (15/16) Reach 2 Flute PCD Diamond Coated Carbide Corner Radius End Mill

  • Item Code: 12224-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD Diamond brazed on carbide body
    • Center cutting
    • Recommended work piece material: Aluminum, Copper, Brass, Bronze, Plastics, Graphite, Carbon, Carbon Fiber Materials, Green Carbide, Gold, Silver, Magnesium, Zinc and Green Ceramics.

Tech Specs

Back To Top
Neck Diameter 0.3500"
Neck Diameter 0.3500"
Overall Reach 0.9370" (15/16)
Overall Reach 0.9370" (15/16)
Radius Decimal 0.0300"
Radius Decimal 0.0300"
Decimal Cutting Diameter 0.3750"
Coating PCD Diamond
Coating PCD Diamond
Fractional Cutting Diameter 3/8"
Fractional Cutting Diameter 3/8"
Material Solid Carbide
Material Solid Carbide
Shank Diameter 0.3750" (3/8)
Shank Diameter 0.3750" (3/8)
Number of Flutes 2
Number of Flutes 2
Brand Harvey Tool
Brand Harvey Tool
Length of Cut 0.2500" (1/4)
Length of Cut 0.2500" (1/4)
Overall Length 2.5000" (2-1/2)
Overall Length 2.5000" (2-1/2)
