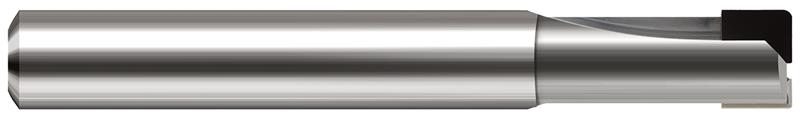

0.5000 in. (1/2) Cutter Diameter x 0.0300 in. Radius x 0.2500 in. (1/4) Length of Cut x 1.0000 in. (1) Reach 2 Flute PCD Diamond Coated Carbide Corner Radius End Mill

  • Item Code: 12232-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Non-Ferrous Materials

Features Tech Specs

Features

Back To Top
    • PCD Diamond brazed on carbide body
    • Center cutting
    • Recommended work piece material: Aluminum, Copper, Brass, Bronze, Plastics, Graphite, Carbon, Carbon Fiber Materials, Green Carbide, Gold, Silver, Magnesium, Zinc and Green Ceramics.

Tech Specs

Back To Top
Overall Reach 1.0000" (1)
Overall Reach 1.0000" (1)
Decimal Cutting Diameter 0.5000"
Decimal Cutting Diameter 0.5000"
Radius Decimal 0.0300"
Radius Decimal 0.0300"
Coating PCD Diamond
Coating PCD Diamond
Fractional Cutting Diameter 1/2"
Fractional Cutting Diameter 1/2"
Material Solid Carbide
Material Solid Carbide
Neck Diameter 0.4610"
Neck Diameter 0.4610"
Number of Flutes 2
Number of Flutes 2
Brand Harvey Tool
Length of Cut 0.2500" (1/4)
Length of Cut 0.2500" (1/4)
Overall Length 3.0000" (3)
Overall Length 3.0000" (3)
Shank Diameter 0.5000" (1/2)
Shank Diameter 0.5000" (1/2)
