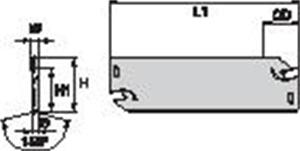

4.1mm Width x 26.0mm Height ProGroove Cut Off Blade Holder
- Item Code: 12251344000 W
- Brand: WIDIA
- Unit Size: 1
Description
ProGroove™ Cut-Off Blades
Tech Specs
Back To Top| Adapter Size Machine Side-EPP | 0260 |
|---|---|
| Catalog Groove Width (Inch) | 0.1614 |
| Clamping Type | Y - A2/A3/A4/PG/TG Clamping |
| Cutting Depth (Inch) | 1.5748 |
| Cutting Height (Inch) | 0.84252 |
| Lead Angle ISO | 90.000 |
| Shank Width (Inch) | 0.1260 |
| Shank Height (Inch) | 1.0236 |
| Tool Length (Fraction) | 4.3307 |
| Tool Length (Metric) | 110.000 |
| Adapter Type Machine Side-EPP | PMK - Prismatic Adapter Kenna |
| Tool Length (Inch) | 4.3307 |
| Units of Tool (Extract) | MM - Metric |
| Product Type | Cut-Off |
| Adapter Style Machine Side | Toolholder |
| Adapter Style Machine Side-EPP | PMK-02 Cutoff Sup Bld A1-A3 |
| Catalog Groove Width (Metric) | 4.100 |
| Cutting Height (Metric) | 21.400 |
| Material | Steel |
| Toolholder Shape | S - Straight |
| Shank Height (Metric) | 26.000 |
| Shank Width (Metric) | 3.200 |
| Cutting Depth (Metric) | 40.000 |
| Brand | WIDIA |
| Lead Angle ANSI | 0.000 |
