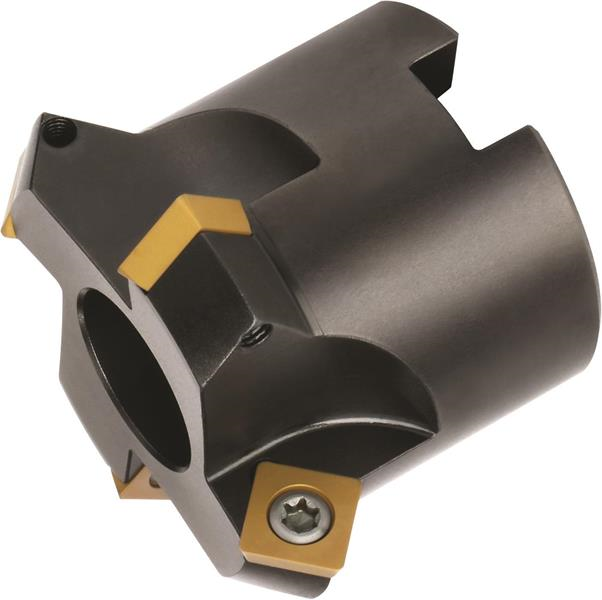

63.00mm Diameter, 5 Flutes, 40mm Overall Length, M25 Chamfer Mill
- Item Code: 12292511600-W
- Brand: WIDIA
- Unit Size: 1
Description
Chamfer milling cutter
metric
Features
Back To Top- M25 Series Chamfer Mills are the ideal tool of choice for milling all steel, stainless steel, and cast iron materials
- With clearance for back-chamfer operations, the M25 Series will help streamline your most challenging milling operations
Tech Specs
Back To Top| Cutting Diameter | 63.00 MM |
|---|---|
| Depth of Cut | 8.30 MM |
| Insert Shape | Square |
| Product Type | Chamfer Mill |
| Shank Diameter | 22.00 MM |
| Direction of Cut | Right Hand |
| Brand | WIDIA |
| Coolant Through (Yes/No) | No |
| Included Angle | 90 |
| Number of Flutes | 5 |
| Type | Indexable Milling Cutters |
| Flute Style | Helix |
| Lead Angle | 45 Deg |
| Overall Length | 40.00 MM |
