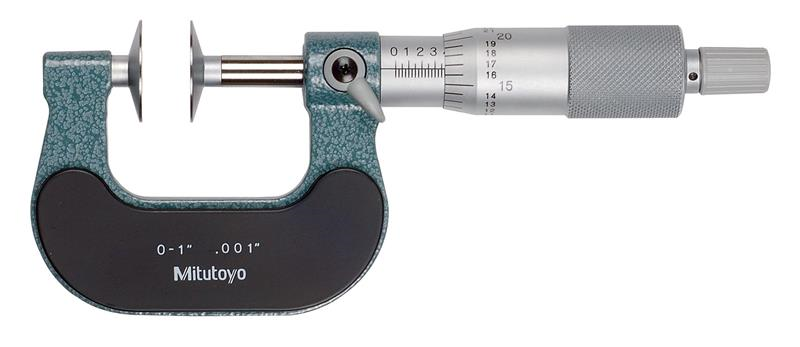

0-1 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, High Speed Steel Face, Disc Micrometer

  • Item Code: 123-125
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Diameter of measuring disk: .787��/ 20mm
    • Has a Ratchet Stop for constant measuring force.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Spindle Face Disk
Primary (Outside Diameter) Contact Point Material Hardened Steel
Case Material Plastic Case
Clutch Ratchet Stop
Mechanical or Digital Mechanical
Case Part Number 475114
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In
Accuracy ±.0002 In
Contact Point Diameter .787 In
Contact Point Flatness .00004 In
Spindle Lock Y
Thimble Diameter Measurement 18mm
Finish Enamel
Individual or Set Individual
Parallelism .00016 In
Primary Measuring Range Upper - Inch 1 In
Brand Mitutoyo
Resolution or Graduation .001 In
