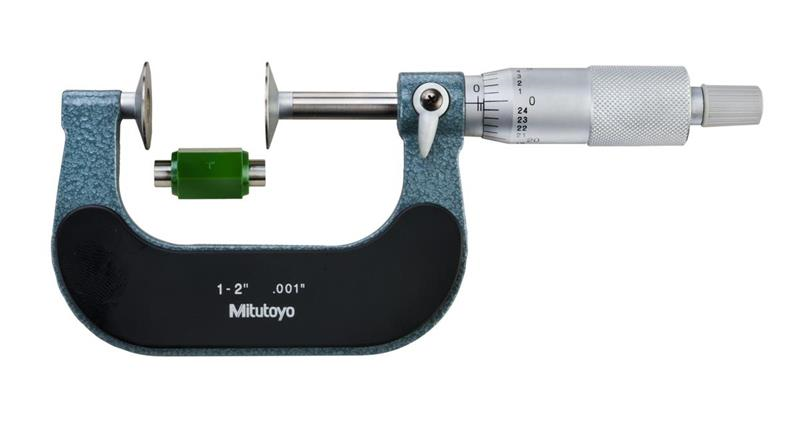

1-2 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, High Speed Steel Face, Disc Micrometer

  • Item Code: 123-126
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Diameter of measuring disk: .787��/ 20mm
    • Has a Ratchet Stop for constant measuring force.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Contact Point Diameter .787 In
Individual or Set Individual
Parallelism .00016 In
Resolution or Graduation .001 In
Thimble Diameter Measurement 18mm
Accuracy ±.0002 In
Primary Measuring Range Upper - Inch 2 In
Spindle Face Disk
Brand Mitutoyo
Finish Enamel
Spindle Lock Y
Mechanical or Digital Mechanical
Range 1 - 2 In
Case Material Plastic Case
Case Part Number 475114
Clutch Ratchet Stop
Primary (Outside Diameter) Contact Point Material Hardened Steel
Contact Point Flatness .00004 In
Primary Measuring Range Lower - Inch 1 In
