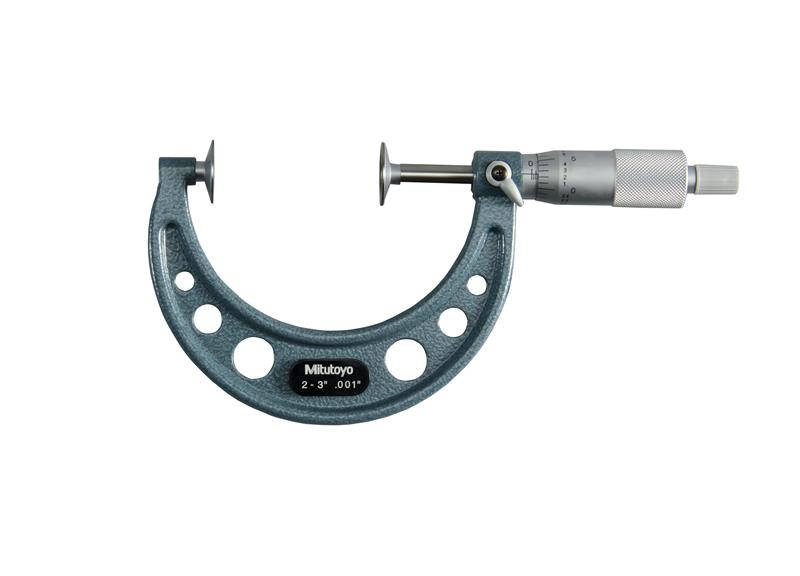

2-3 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, High Speed Steel Face, Disc Micrometer

  • Item Code: 123-127
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Diameter of measuring disk: .787��/ 20mm
    • Has a Ratchet Stop for constant measuring force.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Case Part Number 475114
Primary Measuring Range Lower - Inch 2 In
Clutch Ratchet Stop
Primary Measuring Range Upper - Inch 3 In
Spindle Face Disk
Individual or Set Individual
Accuracy ±.0003 In
Brand Mitutoyo
Mechanical or Digital Mechanical
Contact Point Flatness .00004 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Resolution or Graduation .001 In
Contact Point Diameter .787 In
Range 2 - 3 In
Spindle Lock Y
Finish Enamel
Parallelism .00016 In
