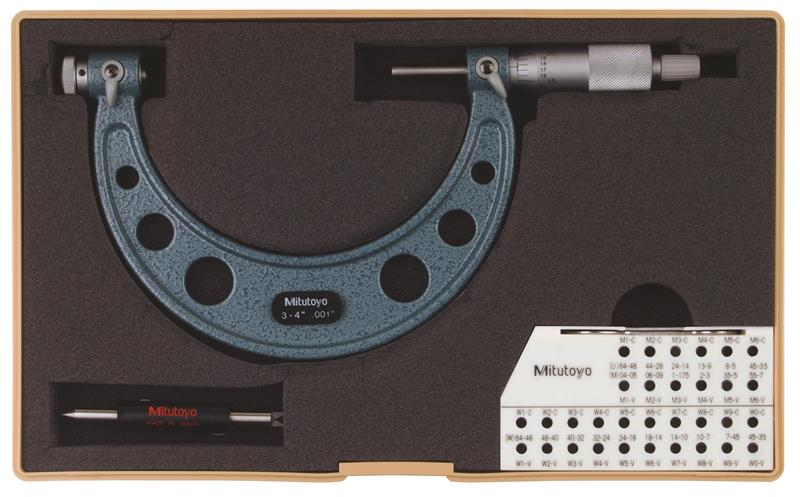

3-4 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, High Speed Steel Face, Interchangeable Anvil Thread Micrometer

  • Item Code: 126-140
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Has optional 60 and 55 degree V-anvil and conical spindle made of high-grade steel, hardened and precision ground.
    • Supplied in a fitted plastic case.
    • With Ratchet Stop for constant measuring force.

Tech Specs

Back To Top
Primary Measuring Range Lower - Inch 3 In
Finish Enamel
Spindle Lock Y
Clutch Ratchet Stop
Range 3 - 4 In
Case Part Number 453221
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Upper - Inch 4 In
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Mechanical or Digital Mechanical
Brand Mitutoyo
Resolution or Graduation .001 In
Spindle Face Variable
Accuracy ±.00025 In
Individual or Set Individual
